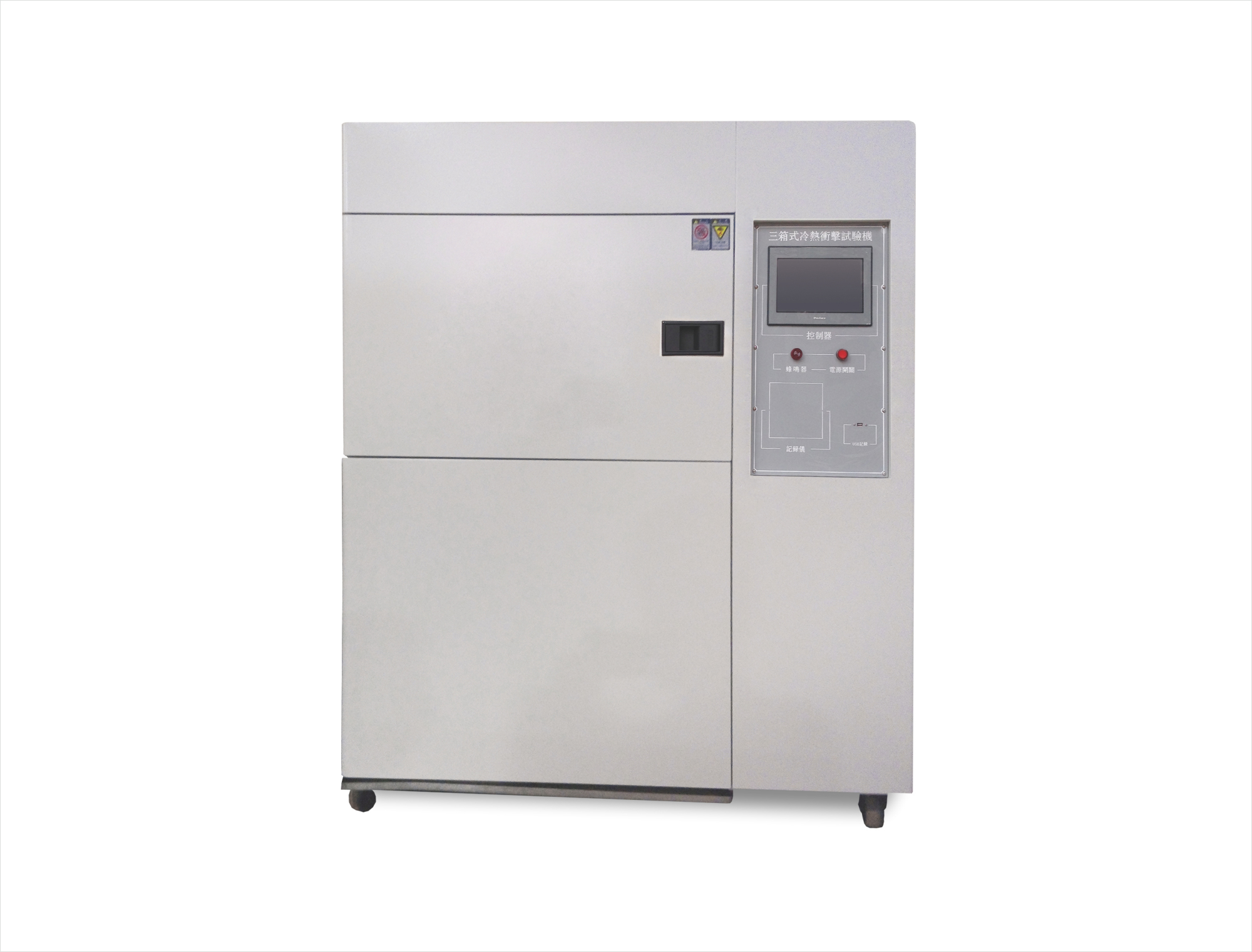

三箱式冷熱衝擊試驗機(氣體式)
分享到:
三箱式冷熱衝擊試驗機(氣體式)
型號: T-TS
規格: 49L、80L、150L或客制化規格
品牌: TOTC
市場價: 0.0
產品詳情


特點:本系統利用高低溫蓄能槽將能量進行儲存、依動作需要打開相應(冷衝、常衝、熱衝)閥門以達到快速衝擊的效果,採用進口LCD彩色觸控屏+PLC進行控制、操作簡單,具有衝擊溫度記錄功能(CVS格式),多重安全保護功能。適用於測試材料結構或復合材料在瞬間情況下經極高溫及極低溫的連續環境下所能承受的程度、藉以在最短時間內試驗其因熱脹冷縮所引起的化學變化或物理傷害。


規格:衝擊溫度範圍:低溫-65℃、-55℃、-45℃~0℃,高溫65℃~150

   內箱容積:49L80L150L或客制化規格

   選配:記錄儀、玻璃視窗、水冷或風冷冷凝方式


Features: The system uses high-temperature energystorage tank for storage, according to the need to open the appropriate action(cold punch, hot punch, often rushed) valve in order to achieve the effect ofrapid impact, imported LCD color touch screen + PLC control, simple operation,with shock temperature record (CVS format), multiple security features. Fortesting the material structure or composite material in the instant case by theextremely high temperatures and extremely low temperature of continuousenvironment can bear, in order to test in the shortest time chemical changes orphysical damage due to thermal expansion and contraction caused by it.


Specifications: shock temperature range: lowtemperature -65 ,-55 ,-45 ~ 0 ,temperature 65 ~ 150

Innertank capacity: 49L, 80L, 150L or customized specifications

Optional:recorder, glass windows, water-cooled or air-cooled condensing mode
