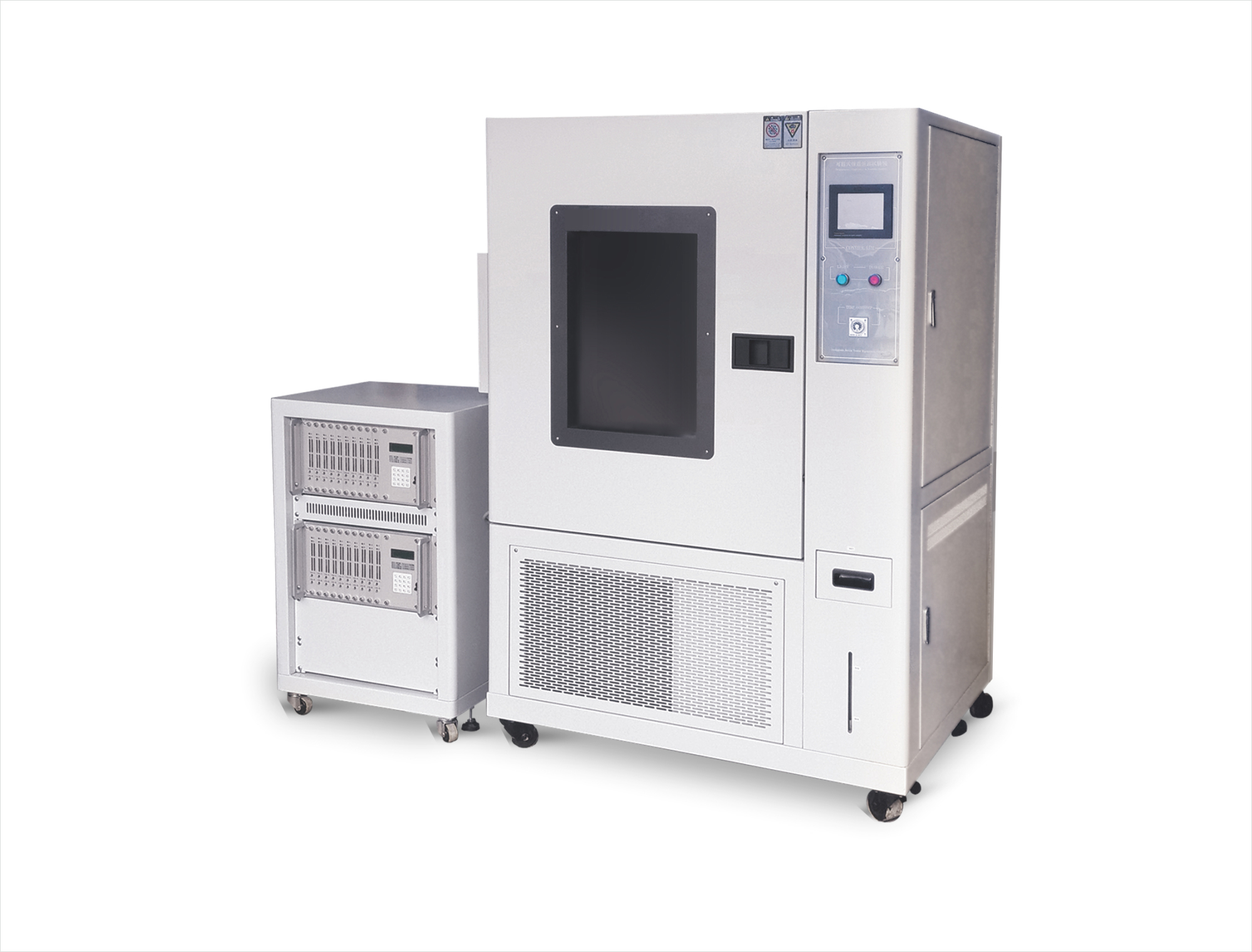

LED專用恒溫恒濕燒測系統
分享到:
LED專用恒溫恒濕燒測系統
型號: T-TH-LED
規格: 200mA、500mA或其它客制化規格
品牌: TOTC
市場價: 0.0
產品詳情


特點:採用LED點亮專用定電流電源、鐵氟龍排線,安裝有專用鐵氟龍導槽方便拔插產品,內部結構經過特殊設計,可以承受大功率發熱負載、最大發熱量可達1000W,並可保證箱內基板溫度正負誤差,箱門安裝有玻璃視窗方便觀察箱內點亮情況,多重安全保護及超溫保護功能。適用於LED晶片、燈珠的高溫點亮老化測試


規格:單路輸出電流:200mA500mA或其它客制化規格

   電壓範圍:DC 5VDC 12V或客制化規格

   基板數量:60

   溫濕度範圍:-60℃~150℃、濕度20%RH~98%RH

   最大發熱量:500W1000W或其他客制化規格


Features:LED lights constant current power supply dedicated, Teflon cable, install aspecial plug Teflon guides convenience products, internal structure speciallydesigned to withstand high-power heating load, maximum heat up 1000W, and toensure that the temperature inside the margin of error of the substrate, theglass door is installed to facilitate the observation window box lighted cases,multiple security protection and over-temperature protection. For LED chips,high-temperature aging test lit lamp beads


Specifications:Single Output Current: 200mA, 500mA, or other customized specifications

Voltagerange: DC 5V, DC 12V or customized specifications

The numberof substrates: 60

Temperatureand humidity range: -60 ~ 150 ,humidity of 20% RH ~ 98% RH

Maximumheat: 500W, 1000W or other customized specifications
