加速度衝擊試驗機
分享到:

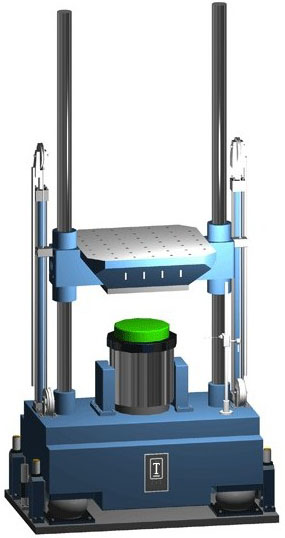

加速度衝擊試驗機
規格: 250mm×250mm
品牌: TOTC
市場價: 0.0
產品詳情


特點:SS試驗台吸收了美國MTS和日本吉田精機的衝擊試驗台的優點,外觀更精緻、美觀,減振裝置更科學,工作可靠性高;適用於航空、航太、船舶、兵器、電子、汽車、家電及交通運輸等行業的產品提供其產品抗衝擊能力的試驗設備。通過選擇不同的波形發生器,要方便地進行半正弦波、後臺峰鋸齒波或梯形波等衝擊波形的衝擊試驗。滿足GB/T2423.5GJB150IEC68-2-17等標準。


規格:最大負載:20Kg

   檯面尺寸:250mm×250mm

   脈衝峰值加速度範圍:半正弦波 2~20ms;後峰鋸齒波 4~18ms

   最大衝擊高度:1500mm

   速度變化量容差:±15%

   波形容差:1.當脈衝持續時間3ms時,峰值加速度容差為±10%;脈衝持續時間容差為±10%2.當脈衝持續時間1ms,波形容差應在標準規定的範圍內。


Features:SS test bench absorbed American MTS and Japan Yoshida Seiki impact test benchhas the advantage of, more refined appearance, beautiful, damping device ismore scientific, high working reliability; for in aviation, aerospace, ships,weapons, electronics, automobiles, home appliances and transportation industryproducts provide the impact resistance of the product test equipment. Byselecting different waveform generator, to be convenient for half sine,sawtooth wave background or trapezoidal wave shock wave shock test. To meet theGB/T2423.5, GJB150, IEC68-2-17 and other standards.


Specifications:Maximum load: 20Kg

Table size: 250mm * 250mm

The peak pulse acceleration range: halfsine wave 2~20ms ; After the peak sawtooth wave 4~18ms

Maximum impact height: 1500mm

The variation of speed tolerance: + 15%

Waveform tolerance: 1 when the pulseduration is less than or equal to 3MS, the peak acceleration tolerance of +10%; pulse duration tolerance is + 10%. 2 when the pulse duration is more than1ms, should be in the range of tolerance waveform within the prescribedstandard.
