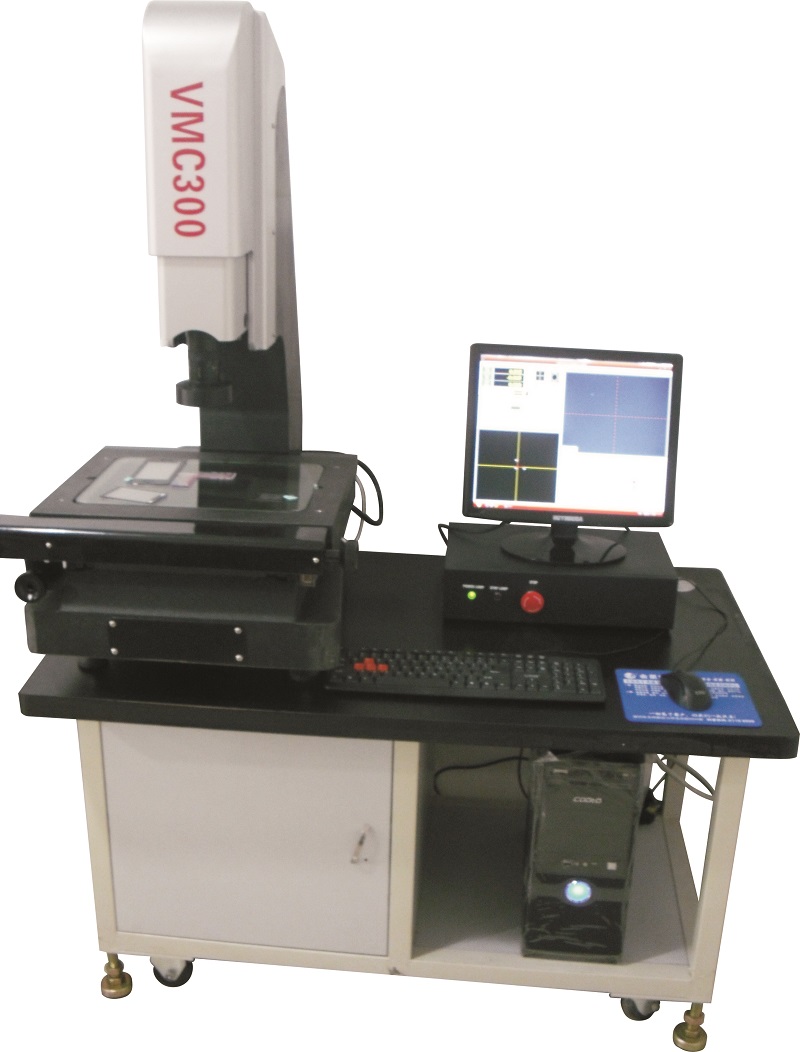

全自動3D光學影像座標測量儀
分享到:
全自動3D光學影像座標測量儀
規格: 視頻放大倍率:30~225X
品牌: TOTC
市場價: 0.0
產品詳情


特點:本設備採用高精度花崗岩結構,立柱及工作臺保證擁有極高的穩定性及鋼性。兩層工作臺設計,精密級V型導軌,保證擁有極高的機械精度。三軸摩擦精密傳動,靈敏可靠、無間隙,並可以快速移動。高品質光學系統和高解析度CCD,確保擁有高品質的測量畫面。LED環形表面光源,表面光可升降,實現大角度照明。精密光學尺,解析度為0.001mm,重複精度為0.001mm


規格:攝像機:CCD 彩色1/3’’ SONY晶片組 700TV

   變焦物鏡倍率:0.7~4.5X

   工作距離:90mm

   視頻放大倍率:30~225X

   顯示解析度:0.001mm

   示值誤差:X.Y≤(3+L/200)μm     Z≤(4+L/150)μmL為被測長度單位:mm



Features:This equipment adopts high precision granite column structure, and the worktable and ensure the stability of steel has a high. The design of the twofloor, precision V rails, ensure with high mechanical precision. Three axisfriction transmission precision, sensitive and reliable, seamless, and canquickly move. High quality optical system and high resolution CCD, ensure thatthe measurement has a high quality picture. LED annular surface light source,surface light lifting, large angle illumination. Precision optical ruler,0.001mm resolution, repeat accuracy is 0.001mm.


Specifications:

                    Camera:CCD color 1/3''   SONY chipset 700TV

Zoom magnification: 0.7~4.5X

Working distance: 90mm

Video magnification: 30~225X

Display resolution: 0.001mm

Error of indication:X.Y = (3+L/200) μm    Z (4+L/150) μm (L isthe length measured unit: mm)
