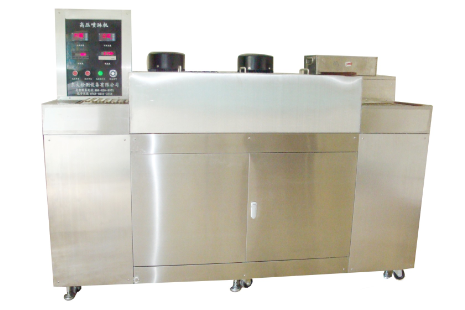

IC片專用高壓噴淋清洗機
分享到:
IC片專用高壓噴淋清洗機
規格: 工作水壓:6-10Kg/cm2(可調,可定制)
品牌: TOTC
市場價: 0.0
產品詳情


特點:本設備採用半導體框架產品環氣樹脂封裝溢料(Deflashing)去除專用設備;設計理念先進,產品適用範圍寬廣;獨到的傳輸系統保障運行過程的順暢;設備運行穩定,運行和維護成本低,操作簡單,節水節電性能突出;配合使用去毛刺溶液系列,能夠在較低的壓力下達到更充分的去除溢料的效果,並確保對產品無損傷。


規格:工作水壓:6-10Kg/cm2(可調,可定制)

   產能: 1500/小時 0~6 /min(可調,可定制))

   傳動方式:不銹鋼網帶傳輸,鏈條為不銹鋼鏈條

   高壓水噴嘴:按照設備需求配置

   能源消耗:自來水-10~15/分鐘

   電功率:380V 50Hz30kW

   水源:自來水(或純水)



Features:this device using frame semiconductor product ring gas resin package overflowmaterial (Deflashing) removal of special equipment; advanced design concept,broad scope of products; smooth original transmission system guarantee system;equipment operation is stable, operation and low maintenance cost, simpleoperation, saving water and electricity outstanding performance; with the useof deburring solution series to achieved under lower pressure to more fully theremoval of spilled material effect, and to ensure that no damage to theproduct.


Specifications:Workingpressure: 6-10Kg/cm2 (adjustable, customizable)

Capacity:1500 / hour (0~6 m /min (adjustable, customizable))

Transmission:stainless steel mesh belt transmission chain, stainless steel chain

Highpressure water jet:according to the configuration of equipment demand

Energyconsumption: tap water -10~15 L / min

Electricpower: 380V 50Hz 30kW

Water: tapwater (or water)
